In this unit you will learn

1. How to use a Jupyter notebook to enter text, equations, and Python code.
2. How to use matplotlib to make plots of data and to embed them in the notebook.
3. How to use Euler’s method to approximate the solution to a first-order differential equation.
4. How not to trust numerical solutions!

This introduction assumes that you already have Jupyter installed and know how to launch a new notebook. See the Jupyter page for detailed instructions.

Newton’s equations of motion (in one dimension) are typically second-order differential equations of the form \[ m \frac{d^2 x}{dt^2} = F(x, v, t) \] where \(v = dx/dt\) and \(F\) is some function of the position, velocity, and time. To get started in understanding how to solve such equations numerically, let’s start with a simpler situation in which the acceleration is proportional to the velocity, \[ m \dot{v} = f(v) \] where the dot indicates differentiation with respect to time and \(f\) is a known function that depends only on the velocity \(v\). This form could describe, for example, a ball bearing moving through a viscous fluid.

One way to visualize this equation is to show the slope \(dv/dt = f(v)/m\) as a function of \(t\) and \(v\) in a slope field. We start at a particular value of \(v\) at \(t = 0\) and follow the local value of slope to determine how the value of \(v\) should change in the next small interval of time. This takes us to a new value of \(v\), from which we can determine a new value of slope and then a new value of \(v\), etc. The result is illustrated by the light red line in the figure below.

Let us take the first-order differential equation above and simplify it by moving the mass to the right-hand side, \[ \frac{dv}{dt} = \frac{1}{m} f(v) \] which we can also write suggestively as

Conceptually, this equation says that if we know \(v(t)\) at some moment of time \(t\), we know how \(v\) will change in the next infinitesimal increment of time \(dt\); the rate of that change is just given by \(f(v)/m\). However, this expression is only true in the limit that \(dt\) is infinitesimal (infinitely tiny), which means that we would need to apply this rule an infinite number of times to cover even a modest (finite) time interval.

We would much rather take time steps larger than “infinitely small,” so that we can cover a finite interval of time in a finite number of steps. In that case,

where \(\delta t\) is now a small but finite interval of time. This equation embodies Euler’s method of approximating the solution of a differential equation: it pretends that the derivative doesn’t change over the finite time interval \(\delta t\), which is only really true if \(f(v)\) is a constant. (I am going to reserve \(\Delta t\) to represent an extended interval of time, which we might break up into a number of smaller steps \(\delta t\) to which we apply the above equation.)

To see how successfully Euler’s method works, let’s consider a situation where the damping force on a particle of mass \(m\) is proportional to the particle’s velocity,

where \(b\) is a constant whose dimensions in SI units would be newton-seconds per meter. This damping force is definitely not independent of the particle’s velocity; as the particle slows down, the damping force retarding its further motion diminishes. Therefore, we should expect that using Euler’s method will tend to be increasingly inaccurate the larger we make the time steps \(\Delta t\). Let’s test that hypothesis using in a Jupyter notebook. First, we'll use nothing but the straight Python you have already learned. Then we’ll introduce some refinements.

At the top of the notebook, enter

%matplotlib notebook

import numpy as np

import matplotlib.pyplot as plt

The first line enables graphics output by matplotlib to be embedded in the notebook; the other two load the numpy and matplotlib modules.

b = 1      # the damping coefficient (you can change this value)

m = 1      # the particle mass (you can change this, too)

v0 = 5     # the initial velocity

dt = 0.1   # the time step (you can also change this, if you like)

v = [v0,]  # initialize an array of velocities

t = [0, ]  # and an array of times

while t[-1] < 1:

  dv = -b / m * v[-1] * dt  # compute the change in velocity, assumed constant over time interval

  v.append(v[-1] + dv)      # append the new velocity to the growing array of velocities

  t.append(t[-1] + dt)      # and append the new time



# Solving exactly gives the equation v(t) = v0 * exp(-b/m t)

# Let's plot the comparison between the Euler’s-method solution and the true function



fig, ax = plt.subplots()   # create a plot

ax.plot(t, v, 'ro', label='Euler')

ax.plot(t, v0 * np.exp(-b/m * np.array(t)), 'b-', label='true')

ax.set_xlabel('$t$')

ax.set_ylabel('$v$')

ax.legend();

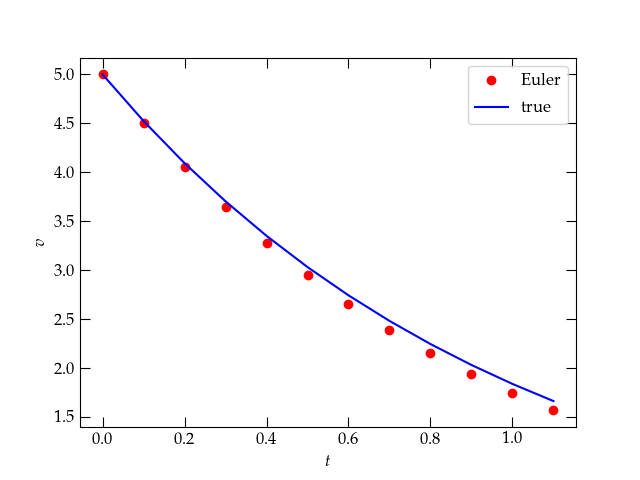

The results are shown in Fig. 2, which indicates that the values calculated using Euler’s method lie below the true solution to the differential equation, which is \(v(t) = v_0 \exp(-\frac{b}{m} t)\).

One way to explore how (in)accurate Euler’s method is would be to plot the difference between its predictions and the correct answer. We would expect these differences to grow over time; the more steps we take, the farther away from the correct solution we will stray. It will be convenient to write first a little function to “run” Euler’s method. It will take a list of time values and the starting velocity and then calculate all the remaining velocities.

def Euler(tvals, v0, b=1, m=1):

  """Starting at v0 at the first entry in tvals, use Euler's

  method to integrate the first-order differential equation to

  find v at each of the remaining tvals.

  """

  v = [v0,] # initialize the output array

  for n in range(1, len(tvals)):

        dt = tvals[n] - tvals[n-1] # in case the time steps aren't even

        dv = -b * v[-1] * dt / m

        v.append(v[-1] + dv)

  return np.array(v)

We can now use this routine to explore the errors.

def EulerError(nsteps:list, b=1, m=1, v0=5):

  """Prepare a graph showing errors accumulated by using Euler's

  method to integrate a first-order differential equation.

  """

  assert isinstance(nsteps, (tuple, list, np.ndarray)), "Pass in a list of positive integers"

  fig, axes = plt.subplots(1, 2, figsize=(8, 4))  # create an empty plot

  ax1, ax2 = axes

  ax1.set_xlabel('$t$')

  ax1.set_ylabel('$v$')

  ax2.set_xlabel('$t$')

  ax2.set_ylabel('Error')

  for n in nsteps:

        tvals = np.linspace(0, 1.0, n+1) # linspace divides the span between the arguments into n equal steps

        vvals = Euler(tvals, v0, b, m)

        ax1.plot(tvals, vvals, '.-', label=str(n))

        ax2.plot(tvals, np.abs(vvals - v0 * np.exp(-tvals * b/m)), '.-', label=str(n))

  ax1.legend()



EulerError([2, 4, 8, 16]) # Cover the [0,1] range in 2, 4, 8, and 16 steps

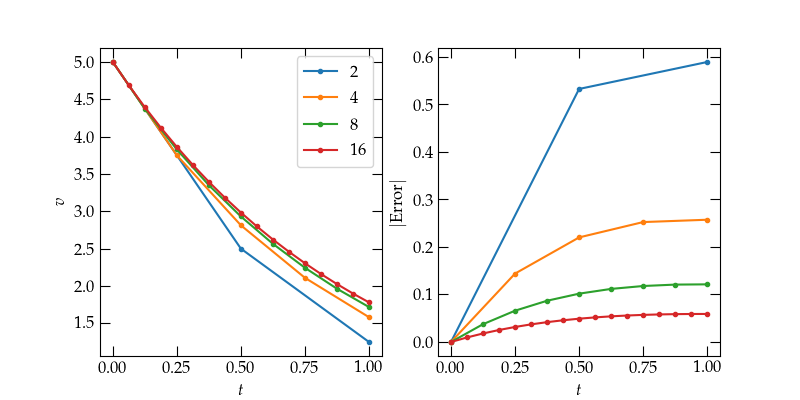

The results for crossing the 1-second time interval in 2, 4, 8, and 16 steps are shown in Fig. 2. Clearly, the smaller the steps we take, the more accurate the numerical approximation is. We could quantify

Your results from the previous exercise might persuade you that the secret to an accurate numerical solution is just to take lots of tiny steps—a sort of “brute force” approach.

The upshot of our investigation of Euler’s method is that it has two salient properties, one good, and one bad:

• Euler’s method is easy to understand, which is great!
• Euler’s method yields large errors, which is terrible!

Fortunately, there are much better ways. I won’t drag you through all the interesting applications of Taylor’s theorem which can be used to explore how the errors depend on step size of various methods, but I can offer a hint of the basic idea. Many of the methods are founded on the insight that it is bad strategy to base the behavior over the entire step on the derivative we calculate at the beginning of the step. It would be smarter to use the initial derivative to make a tentative first step, say, half-way across the full step \(\delta t\), then see what the derivative looks like there. We could then use that value of the derivative to try another half-way step, which would land us in a slightly different spot and with a slightly different slope. Somehow, we then combine all this information to take the full step. In a nutshell, this is the recipe in the celebrated Runge-Kutta method, which is fourth-order in \(\delta t\). (It was developed around 1900 by the German mathematicians Carle Runge and Wilhelm Kutta.) That is, if you take twice as many steps to cross a given time range, the error should drop by a factor of 16! Now we’re talking!

Many years later, some folks realized that it would be nifty if the same intermediate points we calculate while working up the courage to step across \(\delta t\) could be used for two methods of different order. The standard Runge-Kutta-Fehlberg 4th-5th order does this, using the difference between the two methods to estimate the error of the step. The RK45 method is the default method used by the scipy function solve_ivp which we will use instead of Euler’s method. This method is a real workhorse and should suffice for almost all of our work. First, we need to import the routine.

from scipy.integrate import solve_ivp

To use this marvelous routine, let me remind you of the problem we’re trying to solve. In a nutshell, it is that we have a function that computes the derivative,

and we are trying to solve for \(y(t)\) assuming that we know the value of \(y(t_0) = y_0\). In the case of the pearl sliding through the viscous fluid, \(y\) represented the pearl’s velocity \(v\) and the function \(f(t, y)\) took the form \[f(t, y) = - y \times b / m\] As in this case, we commonly need to pass the function \(f\) additional parameters, such as \(b\) and \(m\), so we will define the derivative function as follows:

def myderiv(t, v, b, m):

  """Given the current value of v and t, and the parameters

  b (damping) and m (mass), compute and return the derivative."""

  return -v * b / m

Now, we can use the function solve_ivp to integrate Eq. (7) from a starting value of \(y\) at \(t = 0\). At a minimum, we need to supply the name of the function that computes the derivative, the time interval over which to integrate, and the initial value \(y_0\). If our derivative function takes additional parameters (as ours does), we need to supply the extra parameters in a tuple as the args keyword argument, as shown below.

res = solve_ivp(myderiv, [0, 1], [5.0], t_eval=np.linspace(0, 1, 11), args=(1, 1))

res



  message: 'The solver successfully reached the end of the integration interval.'

         nfev: 14

         njev: 0

          nlu: 0

          sol: None

   status: 0

  success: True

                t: array([0. , 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1. ])

 t_events: None

                y: array([[5.        , 4.52418709, 4.09326263, 3.70297271, 3.34989891,

                3.03077272, 2.74247553, 2.48203859, 2.24664309, 2.03362008,

                1.84045052]])

 y_events: None

As you can see from res, the call to solve_ivp completed successfully; it required 14 evaluations of the function myderiv; and returned the time values at which we requested output by passing the keyword parameter t_eval with a list (array) of time values, along with the computed values of 𝑦. We can get a sense of the errors that this “marvelous” routine computed for us with the following:

errors = res.y[0,:] - 5.0 * np.exp(-res.t * 1.0 / 1.0)

fig, ax = plt.subplots()

ax.plot(res.t, errors, 'ro');

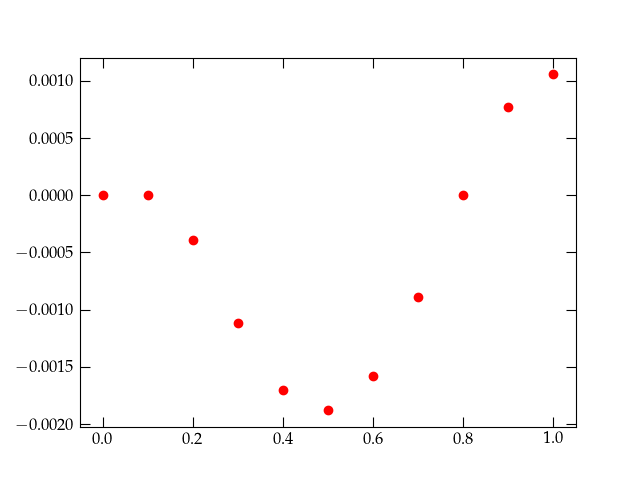

You probably find that the errors reported in Fig. 4 are a bit large for your taste. It depends on the application. If it took a long time to compute the derivative function myderiv, we might be satisfied with these results. But, if that part of the computation isn’t burdensome, perhaps we'd like some improved accuracy. For this purpose, we have a range of choices.
